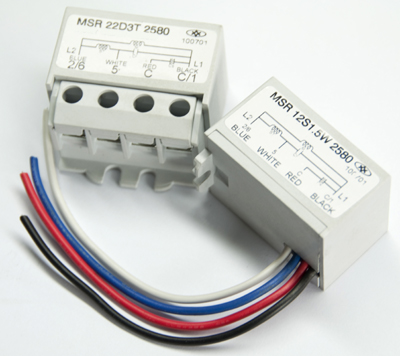

PG-MSR Series leads single phase Motor Starting Relay.
upgraded functions and lower price.

Features

* What is features of our PG-MSR?

1. PG-MSR is non-contact single phase motor starting relay adapting the semi-conductor element.
(an existing starting relay adapt an centrifugal force switch method).

2. approved by Korean Patent; voltage compensation circuit .

3. Terminal and Wire connecting way

1) Withstanding voltage was increased 2 times for 220V Motor.
Adapting a series connection of 2 Triac and an unbalance control circuit, PG-MSR can withstand 2 times of voltage.
so, PG-MSR can cover withstanding voltage max 1,200V and rated current 50A.
So, the frequent burn-out trouble caused by high voltage of 220V Motor doesn't happen.
Even single phase motor can run 2~3Hp by our PG-MSR.

2) Off voltage is automatically controlled by the power voltage.

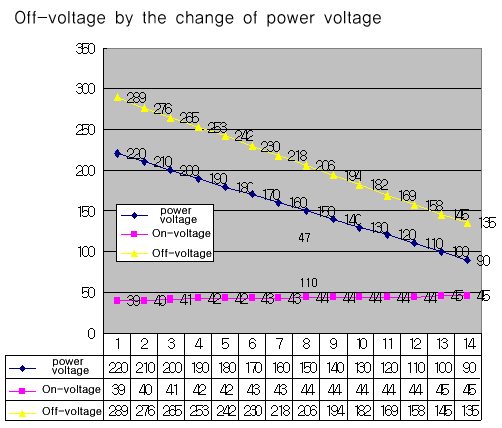

By adapting our patent voltage compensation circuit, motor run well at the high voltage and even under voltage,(ref. graph)
PG-MSR run well under the frequent cut-off circumstances using a long and thin power line like Agricultural motor.

3) Safety is increased by combining a Zero-Crossing control switching circuit and a reactor.
4) Capacity of reactor is reinforced.
By our patented Reactor manufacturing method, the reactor capacity is reinforced several times.
Whereas, existing reactor can be frequently burn-out by a small capacity to install the reactor inside a little space.

5) By the undervoltage trip circuit, motor can be protected at the undervoltage, even if other starting relay can not run motor.
When motor can not run below 50% of rated voltage, our PG-MSR cut off. And motor can be protected by cutting off the current of starting condenser.

6) PG-MSR is off at 65~70% of starting coil voltage and run again at 30% of starting coil voltage.
7) The contact, arcless and long lasting life doesn't easily wear out and safe against burnout.
Better at the moisture, dust, collision and trembling.
most efficient at frequent starting, stop and reversion

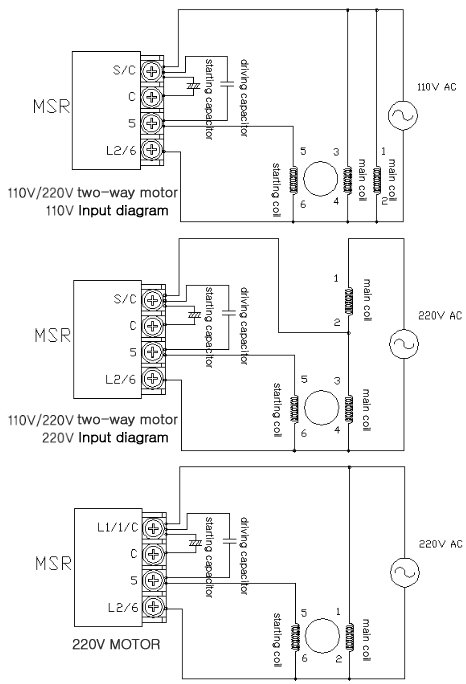

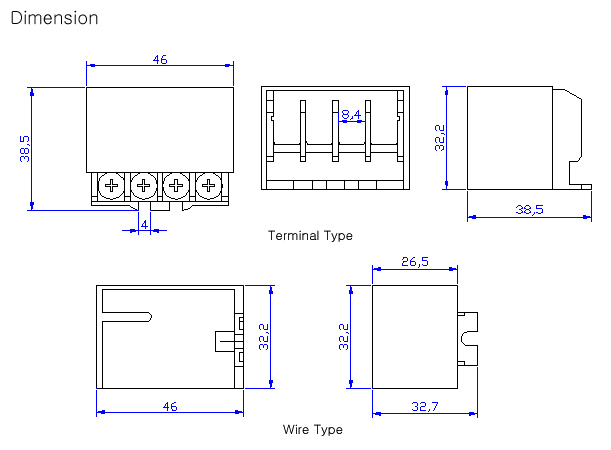

8) Easy installment by diverse connecting way and size
can be installed at the inside/outside of motor and at long distance.


Model & Specification

Starting Method

Motor Voltage(V AC)

MSRVoltage(V AC)

Max Capacity
of Starting capacitor (uF)

Max current Starting Coil(A) &
Motor out put

Connecting Type

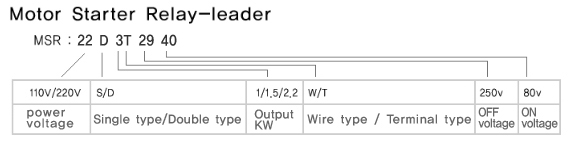

Model

OFF VoltageSetting(V AC)

ON
VoltageSetting(V AC)

Condenser Starting
&Condenser Driving

110/220

110 Only

150

10A(0.5KW)

Teminal/
WIRE

11S0.5T1640

160

40

11S0.5W1640

110/220

110 Only

300

15A(1KW)

Teminal/
WIRE

11S1T1640

160

40

11S1W1640

110/220

110 Only

500

25A(2KW)

Teminal

11S2T1640

160

40

110/220

110 Only

700

50A(3KW)

Teminal

11S3T1640

160

40

220

110 ~ 220 Free

75

10A(0.5KW)

Teminal/
WIRE

24D0.5T2540

290

40

24D0.5W2540

220

110 ~ 220 Free

150

15A(1KW)

Teminal/
WIRE

24D1T2540

290

40

24D1W2540

220

110 ~ 220 Free

250

25A(2KW)

Teminal

22D2T2540

290

40

220

110 ~ 220 Free

300

50A(3KW)

Teminal

22D3T2540

290

40



Condenser Starting

110/220

110 Only

150

10A (0.5KW)

Teminal/
WIRE

11S0.5T1640

160

40

11S0.5W1640

110/220

110 Only

300

15A(1KW)

Teminal/
WIRE

11S1T1640

160

40

11S1W1640

110/220

110 Only

500

25A(2KW)

Teminal

11S2T1640

160

40

110/220

110 Only

700

50A(3KW))

Teminal

11S3T1640

160

40

220

110 ~ 220 Free

75

10A(0.5KW)

Teminal/
WIRE

24D0.5T2940

290

40

24D0.5W2940

220

110 ~ 220 Free

150

15A(1KW)

Teminal/
WIRE

24D1T2940

290

40

24D1W2940

220

110 ~ 220 Free

250

25A(2KW)

Teminal

24D2T2940

290

40

220

110 ~ 220 Free

300

50A(3KW))

Teminal

24D3T2940

290

40
