- Super Small
- Over-Current Circuit Breaker Lock Protection
- Wide Range of Set-up
- Wide Range of Free Voltage
- Operation Indicator and Identification
of Actual Current (LED)
- Manual (Immediate) / Electrical Recovery
- Hard Condition Resistant
- Super Economic in Power Saving |
|
 |
|
|
|
 |
- Power Leakage Protection ? Operating after {TIME} Set-up
- Power Leakage Identification
- Green LED (MONITOR) indicating Power and Operation
- Red LED (TRIP) Dimmed: indicating the State of Power Leakage
- Bright Red LED: indicating Power Leakage Operation |
|
|
|
| Time Set-up |
O-TIME |
0.2sec ~ 30sec |
| Recover |
Auto/Manual(Immediate)/
Electrical(Timely) Recovery |
| Operating Time Spec |
Fixed Time |
| Error Tolerance |
Current |
¡¾5% |
| Time |
¡¾15% |
| Operating Power |
Voltage |
AC 110V |
70V ~ 110V |
| AC 220V |
160V ~ 200V |
| AC 380V |
300V ~ 380V |
| Frequency |
50 / 60§Ô |
| Contact Support |
Type |
1-SPDT(1C) |
| Status |
Normal Time Element (95 96 Close) |
| Rated Current |
AC 250V / 3A Load Resistant |
| Power Saving |
Resistance |
between the outer
port and the circuit |
Over 50§Û for DC 500V Megger |
| Internal Voltage |
between the outer
port and the circuit |
2.0kv normal frequency for 1 min |
| between contact points |
1.0kv normal frequency for 1 min |
| between circuits |
2.0kv normal frequency for 1 min |
| Operation Environment |
Temperature |
Not in Use |
-30¡É ~80¡É |
| When Operating |
-20¡É ~65¡É |
| Humidity |
30~85% RH with no dew condensation |
| Voltage and Rated Current of Terminal |
Over AC 250V 5A |
| Power Consumption |
Below 0.5W |
| Outer Material |
35mm DIN-Rail / Panel |
 |
| |
 |
| 1. Check List Before Use |
Please make sure that the product specifications are the same as ordered.
Check to ensure that no damage has occurred during delivery, and that there are no defects or missing items. |
| 2. Operation Time Set-up |
Precise set-up is required, since it works after the O-TIME is passed. The operating time is as marked as on the scale of control knob.
(1) Operation Time Set-up
O-TIME is Controllable in a range of 0.2~30 seconds.
(2) It will trip after O-TIME is passed, as low voltage occurs while operating.
|
| 3. Rated Current Set-up |
(1) Turn on the generator after setting up the optimal low voltage with the control knob.
(2) While slowly turning the control knob counter-clock wise, the point at which the low voltage indicator lamp (O.L) turns off is the point at which the actual voltage (100%) has been reached.
|
| 4. To Confirm Operating |
(1) While the power is on, if the TEST button is pressed, the low voltage indicator lamp on the generator protective relay will illuminate, the power lamp will turn off, and it trips.
(2) When it trips, press the RESET button. The low voltage indicator lamp will turn off, and the power lamp will illuminate as the initial state is recovered.
|

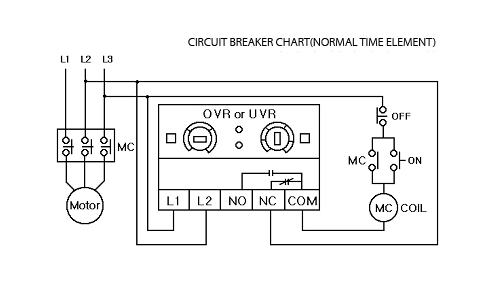

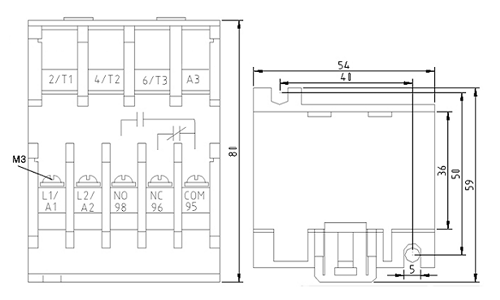

| 5. Circuit Breaker Chart |
 |
|
|
|
|
|
