- Super Small - Preliminary Alarm for Current Shortage - Heater Disconnection Alarm Protective   Relay - Break Down Watch Current Shortage Relay - Alternative Replacement for the    Existing   Protective Relay

- Protective Relay for Heater    Disconnection   and  Short Circuit - Current Leakage Protection and   Protective Relay for Under Current   Break Down Watch     and Alarm - Alternative Replacement for the   Existing  Protective Relay

- Current Shortage Protection Alarm( Sounds   after the set {TIME}) - Operating Current Identification - Green LED (MONITOR) indicating Power and   Operation - Red LED (TRIP) indicating the status and   operation of Current Shortage

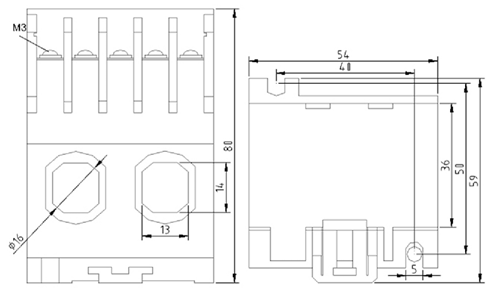

Items

Set-up Range

Rated Current	PG 06 - ES2 - UCR - 220		0.5A ~ 6.5A
	PG 30 - ES2 - UCR - 220		3A ~ 30A
	PG 60 - ES2 - UCR - 220		5A ~ 60A
	PG 120 - ES2 - UCR - 220		10A ~ 120A
Time Set-up	Operating Time	O-TIME	0.2sec ~ 30sec
Recover			Manual(Immediate)/ Electrical(Timely) Recovery
Operating Time Spec			Fixed Time
Error Tolerance	Current		±15%
	Time		±15%
Operating Power	Voltage 2-Phase		AC 90V ~ 260V
	Frequency		50 / 60㎐
Contact Support	Type		1-SPDT(1C)
	Status		Normal Time Element (95 96 Close)
	Rated Current		AC 250V / 3A Load Resistant
Power Saving	Resistance	between the outer port and the circuit	Over 50㏁ for DC 500V Megger
	Internal Voltage	between the outer port and the circuit	2.0kv normal frequency for 1 min
		between contact points	1.0kv normal frequency for 1 min
		between circuits	2.0kv normal frequency for 1 min
Operation Environment	Temperature	Not in Use	-30℃ ~80℃
		When Operating	-20℃ ~65℃
	Humidity		30~85% RH with no dew condensation
Voltage and Rated Current of Terminal			Over AC 250V 5A
Power Consumption			Below 0.5W
Outer Material			35mm DIN-Rail / Panel

1. Check List Before Use

Please make sure that the product specifications are the same as ordered. Check to ensure that no damage has occurred during delivery, and that there are no defects or missing items.

2. Operation Time Set-up

Current Shortage Delay Time: it notifies in advance that the load temperature has gone down when the current flow is less than the set current and the heater is disconnected. Precise set-up is required, since it operates after the set TIME is passed. The operating time is as marked on the scale of the control knob. Under Current Operation Time: measured by timing the period from when the dimly illuminated red lamp (O.L) brightens. (1) Consider the operation of MC when setting up. (2) Operation Time Set-up for ES2-UCR TYPE: controllable in a range of 0~30 sec. (3) Since the time is fixed, for current shortage or leakage operation, it will be tripped after the set TIME has been exceeded, from the moment when the red LED is illuminated.

3. Rated Current Set-up

(1) Turn the Current Control Knob to the Maximum setting and start the Heater. (2) While operating, slowly turn the knob counter-clock wise. The point at which the over current indicator red light (O.L) turns off is the point of actual load current (100%).? Turn the knob slightly clockwise, to set current to 130~140% of the actual current.

4. To Confirm Operating

(1) When current is leaked, the yellow and red LED’s are illuminated, and after the set TIME has been passed, the power output is OFF. (2) While only the power is on, if the TEST button is pressed, the under current indicator lamp (U.L) will illuminate dimply. After the set TIME is passed, the red U.L will be illuminated brightly, and the power lamp will turn off as it trips. (3) When it is tripped, press the RESET button to recover the initial state. The under current indicator lamp will be turned off, and power lamp will be turned back on.

5. Circuit Breaker Chart
